Avaya IP Phone J129

The first model in the J100 Series is the Avaya IP Phone J129.

The first model in the J100 Series is the Avaya IP Phone J129.  The J129 is the lowest-priced model in the family. It is designed for public or walk-up locations such as lobbies, hotels, meeting rooms, student dormitories and retail locations. It can also be used by anybody with basic communications needs. The J129 IP Phone works with Avaya Aura®, Avaya IP Office™ as well as with Avaya Approved Third Party Platforms.

Technical Specifications:

  • One-line Device supports two concurrent calls
  • 2.3” (diagonal) monochrome display – 128 x 32 pixels
  • 3 Context Sensitive Soft Keys
  • Easy to use features including Hold, Transfer, Conference, Forward, Call Park / UnPark
  • Supports SIP-AST for enhanced features and integration on Avaya Aura
  • Native support with IP Office as a basic SIP Device, and in centralized Branch mode
  • Supported on selected 3rd-party Open SIP call platforms.
  • Excellent audio – Handset & Speaker Device. No headset port.
  • Supports optional J100 Wireless Module for Wi-Fi® connectivity
  • Recent Call Log / Contact List
  • Built in volume boost control in Handset for Hearing Impaired
  • Mute Key with optional Mute Alerting
  • Dual 10/100 Ethernet ports to support co-located PC
  • Power over Ethernet Class 1 and support for 802.3az.
  • Simultaneous Registration & Fallback like 9600-series1
  • Support for TLS / SRTP for encryption1,
  • Supports Basic IPT License; Enhanced IPT License for Security & Aura Resiliency, Core License for SBC; and Avaya IP Endpoint License with IP Office
  • Configurable via web interface
  • Not available with Avaya Cloud Office by RingCentral

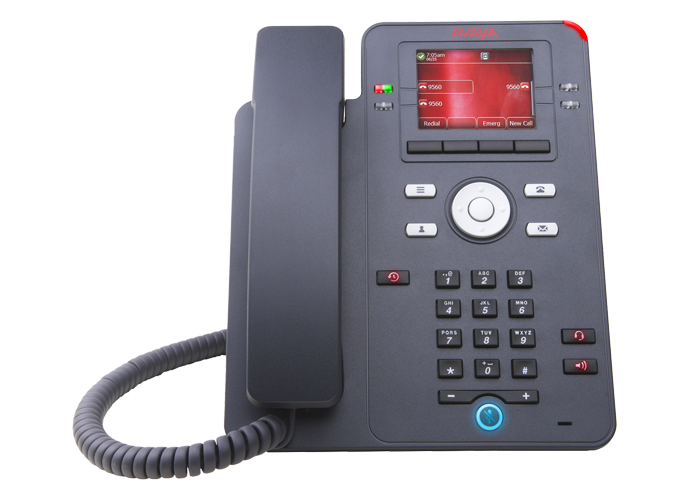

Avaya IP Phone J139

The next model in the J100-series is the Avaya IP Phone J139

The next model in the J100-series is the Avaya IP Phone J139 which has been shipping since July 2018.   It is an upgrade from the J129 and is designed for business users that need only the most frequently used features. J139 IP Phone works with Avaya Aura®, Avaya IP Office™ as well as Avaya Approved Third Party Platforms.

Technical Specifications:

  • Multiple line phone with four red/green line/feature indicators around display
  • 2.8” (diagonal) color TFT display – 320 x 240 pixels
  • 4 Context Sensitive Soft Keys
  • RJ9 with integrated Electronic HookSwitch for Headset Connection
  • Supports SIP-AST for enhanced features and integration on Avaya Aura
  • Supports "CCMS over SIP" for features and integration on IP Office
  • Supported on selected 3rd-party Open SIP call platforms.
  • Handset & Speakerphone. Integrated RJ9 headset port with Electronic Hook Switch (EHS).
  • Recent Call Log / Contact List
  • Built in volume boost control in Handset for Hearing Impaired
  • Mute Key with optional Mute Alerting
  • Dual 10/100/1000 Ethernet ports to support co-located PC
  • Power over Ethernet Class 1 and support for 802.3az.
  • Optional AC -> 5-volt DC power supply
  • Simultaneous Registration & Fallback like 9600-series1
  • Support for TLS / SRTP for encryption1
  • Supports Basic IPT License; Enhanced IPT License for Security & Aura Resiliency, Core License for SBC; and Avaya IP Endpoint License with IP Office
  • Configurable via web interface.
  • Available with Avaya Cloud Office by RingCentral

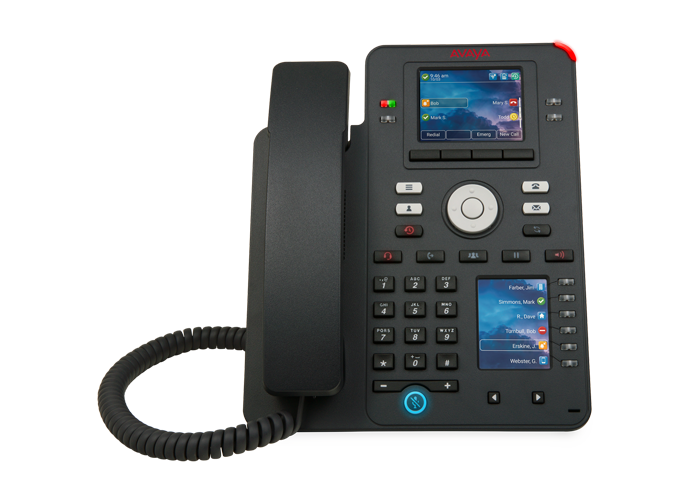

Avaya IP Phone J159

The Avaya IP Phone J159 is a button-intensive IP Phone that addresses the need for everyday voice communications. It is available in Cobalt Black color and is targeted users who desire a small form factor packed with lots of feature buttons.
The Avaya J159 IP Phone uses J100 SIP software which supports the Avaya SIP-AST software with Avaya Aura® which provides incremental features over third party offers which support ‘SIPPING 19’ standards-based SIP software. With J100 SIP software and IP Office 11.0.4.2 or later software, the Avaya J159 IP Phone provides incremental features over third party offers.

Technical Specifications:

The Avaya J159 IP Phone is the ideal solution for end-users who need any of the following capability:

  • Multiple line phone with four red/green line/feature indicators on primary screen and four pages of six red/green line/feature indicators on secondary screen plus fixed feature buttons for Hold, Transfer, Conference, and Redial
  • 2 displays available –
    • Larger Primary display: 2.8” color, 320 x 240 pixel
    • Secondary: 2.3” color, 160 x 240 pixel
  • Gigabit Ethernet
  • Supports optional J100 Wireless Module for Wi-Fi® connectivity (only available with SIP software).
  • Additional connectivity option through USB Type A and Type C
  • RJ9 with integrated Electronic HookSwitch for Headset Connection
  • Integrated ability to support an additional 24 programmable buttons; Secondary screen acts as the effective expansion module
  • Fixed feature keys (Hold, Transfer, Conference, Redial)
  • Any of the following features on Avaya Aura® when using SIP software (MLPP, Bridge Call Appearance, Call Pickup, Hunt Group Busy, Team Button, Enhanced Call Forward, Dial Intercom, Exclusion, LNCC, Priority Calls, Whisper Page)
  • Full feature capability on Avaya IP Office™
  • Color display – Wireless Lan connectivity
  • Available with Avaya Cloud Office by RingCentral

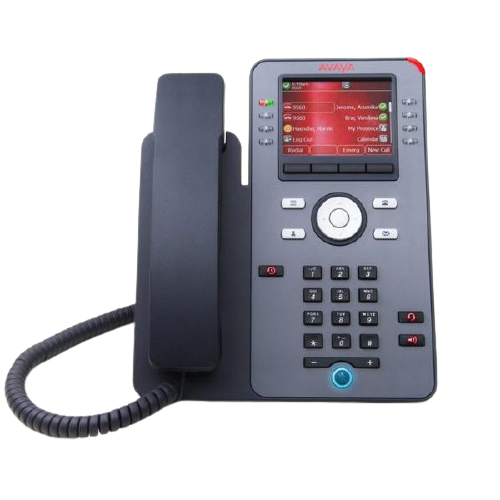

Avaya IP Phone J179

Further, in the J100 Series is the Avaya IP Phone J179

Further, in the J100 Series is the Avaya IP Phone J179. It is the premium workhorse model which addresses the need for everyday voice communications. It is designed for knowledge workers that need the full range of UC features to do their job, want to use a color display, or need advanced capabilities such as Bluetooth headsets or wireless LAN connectivity. Avaya IP Phone J179 works with Avaya Aura®, Avaya IP Office™ as well as Avaya Approved Third Party Platforms

Technical Specifications:

  • Multiple line Device with eight red/green line/feature indicators around display
  • 3.5” (diagonal) color display – 320 x 240 pixels
  • Cobalt Black hardware with Gray and Customizable faceplate and White hardware with White faceplate available
  • 4 Context Sensitive Soft Keys
  • Supports SIP-AST for enhanced features and integration on Avaya Aura®
  • Supports “CCMS over SIP” for enhanced features and integration on Avaya IP Office™
  • Supported on selected 3rd-party Open SIP call platforms.
  • Supports H.323 software for integration with Avaya Communications Manager, and Avaya IP Office™ 10 or below
  • Excellent audio – Handset & Speaker Device. Integrated headset port with Electronic Hook Switch (EHS).
  • Supports optional J100 Wireless Module for Wi-Fi® connectivity and Bluetooth headset connectivity (only available with SIP software).
  • RJ9 with integrated Electronic HookSwitch for Headset Connection
  • Recent Call Log/Contact List
  • Extensive ability for user to customize with SIP software.
  • Built in volume boost control in Handset for Hearing Impaired
  • Mute Key with optional Mute Alerting when using SIP software.
  • Dual 10/100/1000 Ethernet ports to support co-located PC
  • Supports up to three J100 Expansion Modules
  • Power over Ethernet Class 1 (class 2 with JBM24/JEM24) and support for 802.3az.
  • Optional AC -> 5-volt DC power supply
  • Simultaneous Registration & Fallback like 9600-series1
  • Support for TLS / SRTP for encryption
  • Configurable via web interface when using SIP software.
  • Available with Avaya Cloud Office by RingCentral

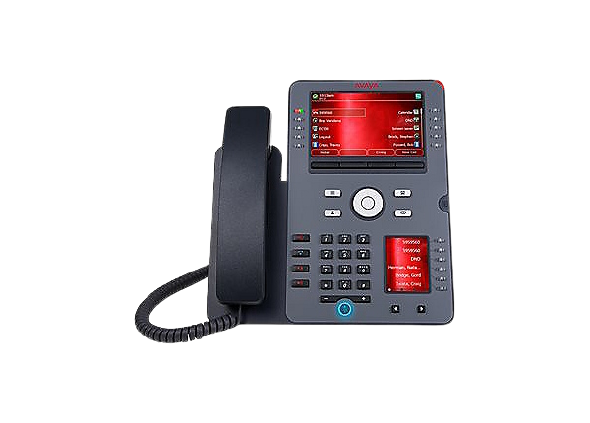

Avaya IP Phone J189

Avaya IP Phone J189 is the latest device in our J100 IP Phones portfolio. This premium model addresses the need for everyday voice communications. It is designed for knowledge workers that need the full range of UC features to do their job, want to use a color display, or need advanced capabilities such as Bluetooth headsets or wireless LAN connectivity. Avaya IP Phone J189 works with Avaya Aura 7.1.3.3, IP Office availability is expected somewhere in Jan 2021.

Technical Specifications:

  • Multiple line phone with ten red/green feature indicators on primary screen and four pages of six red/green feature indicators on secondary screen
  • 2 displays available –
    • Larger Primary display: 5.0” color, 800 x 480 pixel
    • Secondary: 2.3” color, 160 x 240 pixel
  • Cobalt Black hardware with Gray faceplate
  • 4 Context Sensitive Soft Keys
  • Supports SIP-AST for enhanced features and integration on Avaya Aura®
  • Excellent audio – Handset & Speaker Device. Integrated headset port with Electronic Hook Switch (EHS).
  • Supports optional J100 Wireless Module for Wi-Fi® connectivity and Bluetooth headset connectivity (only available with SIP software).
  • Additional connectivity option through USB Type A and Type C
  • RJ9 with integrated Electronic HookSwitch for Headset Connection
  • Recent Call Log/Contact List
  • Extensive ability for user to customize with SIP software.
  • Built in volume boost control in Handset for Hearing Impaired
  • Mute Key with optional Mute Alerting when using SIP software.
  • Dual 10/100/1000 Ethernet ports to support co-located PC
  • Supports up to two J100 Expansion Modules; Secondary screen acts as the effective first expansion module
  • Power over Ethernet Class 1 (class 2 with J100 Expansion Modules) and support for 802.3az.
  • Optional AC -> 5-volt DC power supply
  • Simultaneous Registration & Fallback like 9600-series1
  • Support for TLS / SRTP for encryption
  • Supports H.323 software for integration with Avaya Communications Manager, and Avaya IP Office™ 10 or below
  • Configurable via web interface when using SIP software.

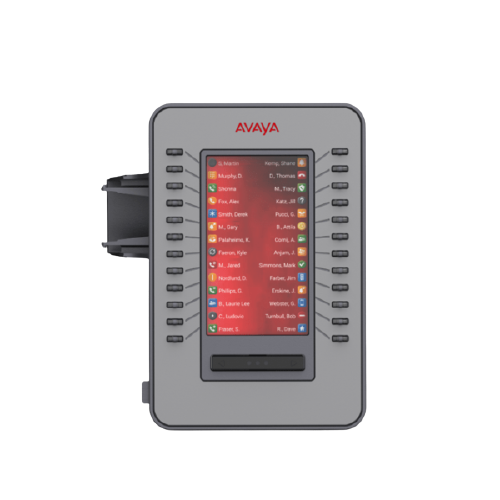

Avaya J100 Expansion Module

The J100 Expansion Module can be attached to either Avaya IP Phone J179 or Avaya IP Phone J189.  When used with the J179 & J189 IP Phone, it operates in color. If a single Expansion Module is attached, it provides 3 pages of 24 configurable buttons.  If two or three J100 Expansion Module are attached, each offers a single page of 24 configurable buttons.
